20W 30W Track Linear Light Slim

ONE-STOP SERVICE

Turn your idea into products.

YOUR LIGHTING SOLUTION PARTNER IN CHINA

BUY LUMENS NOT WATTS

ULTRA HIGH EFFICIENCY

10

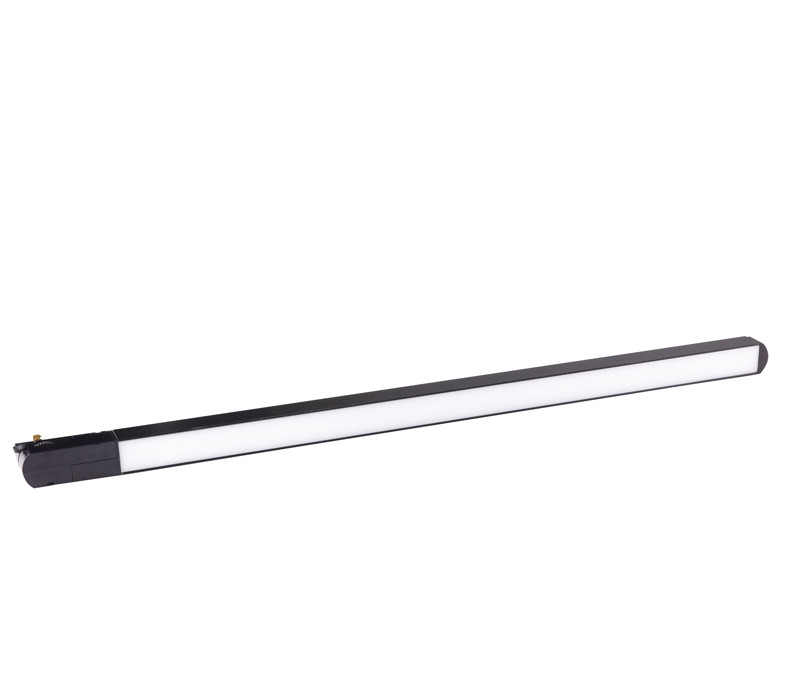

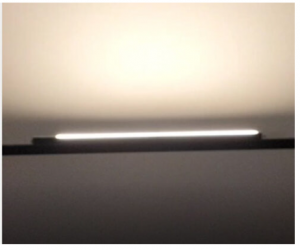

TLL20 20W 30W Track Linear

  •  versatile, affordable and easy-to-use lighting solution that is perfect for a wide variety of applications.
  •  Linear light is available in 20W and 30W, so you can choose the one that best suits your needs.
  •  Featuring a sleek and elegant design, the light is perfect for use in any room in the home or office.
  • With its simple design and easy installation,  is a great way to add style and functionality to any space.
  • plenty of light while remaining energy-efficient.
  • The light output is adjustable, allowing you to tailor the light to your specific requirements.
  • This light can be used to accent any space or provide general illumination thanks to its simple installation design..
  • With a basic design and a range of mounting choices, this lamp can be utilized to produce bright, even lighting in a variety of environments.
  • User-friendly.
Specification Table
model TL20L31 TL30L31
power 20W 30W

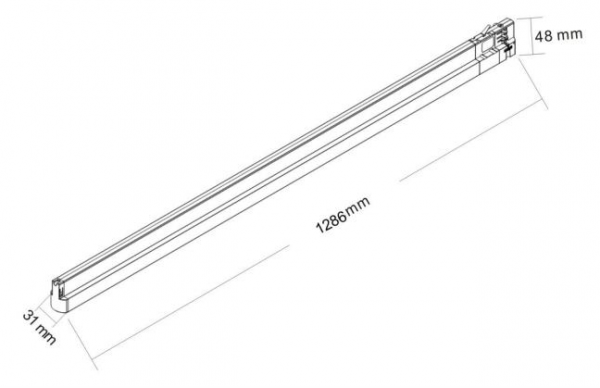

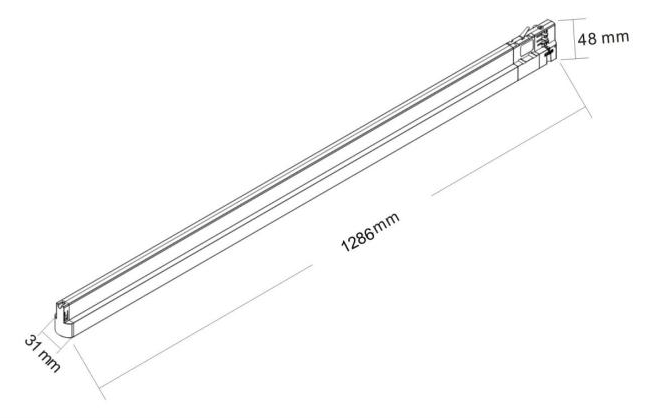

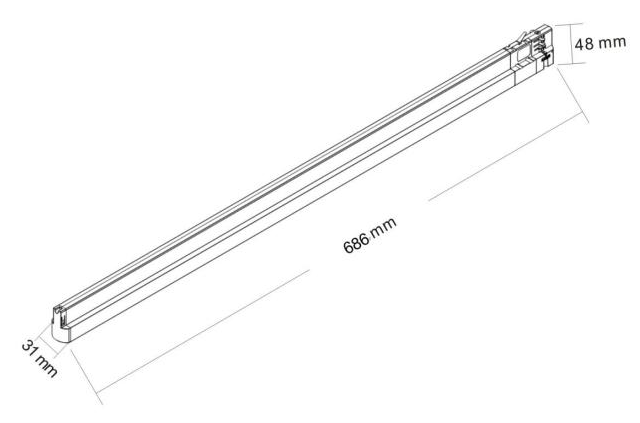

Product size(mm) W31*L600*H48 W31*L1200*H48
Input Voltage AC220-240V 50/60Hz
LED Type Lumileds/Osram SMD 2835
Power Supply Tridonic / Osram / Philips / Boke
Efficacy(lm/W) 100LM/W
Lumen Output±5% 2000LM 3000LM
Beam Angle 120°
CCT (K) 2700/3000K/4000K/5000K/5700K
CRI Ra80/Ra90
PF >0.9
SDCM <3
UGR <15

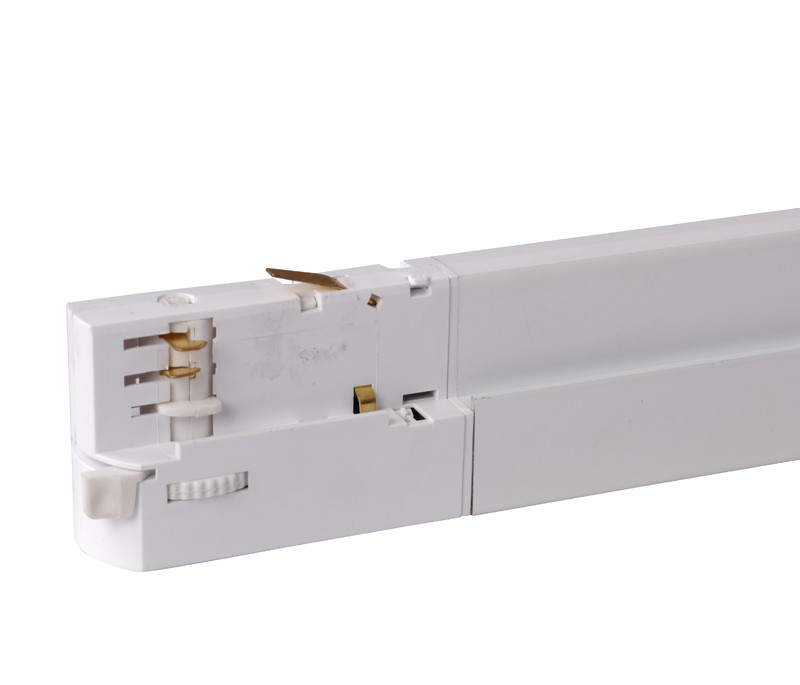

Track Adapt  2/3/4/6wire
Material Die-Casting Aluminum
THD <15
IP Rate IP20
Dimming Non-dimming (Default) /1-10V / Dali/BLE dimming
Certificate CE/RoHS/CB/TUV/SAA/C-Tick
Warranty 5 Years
Q’TY(PCS)/carton 10pcs 10pcs
NW(KG/carton) 5.8kg 12kg
Carton Size(mm) 710*215*142mm 1310*215*142mm
GW(KG/carton) 8.3kg 14kg

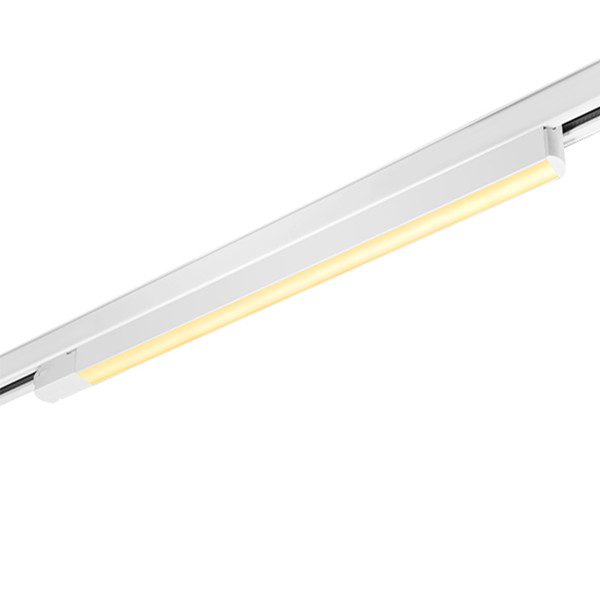

Introducing our 20W/30W LED linear track light, equipped with UGR<19 technology that ensures a comfortable and anti-glare lighting experience for all. This product offers five years of warranty and features Lumileds/Osram SMD 2835 and brand driver for reliable and superior performance.

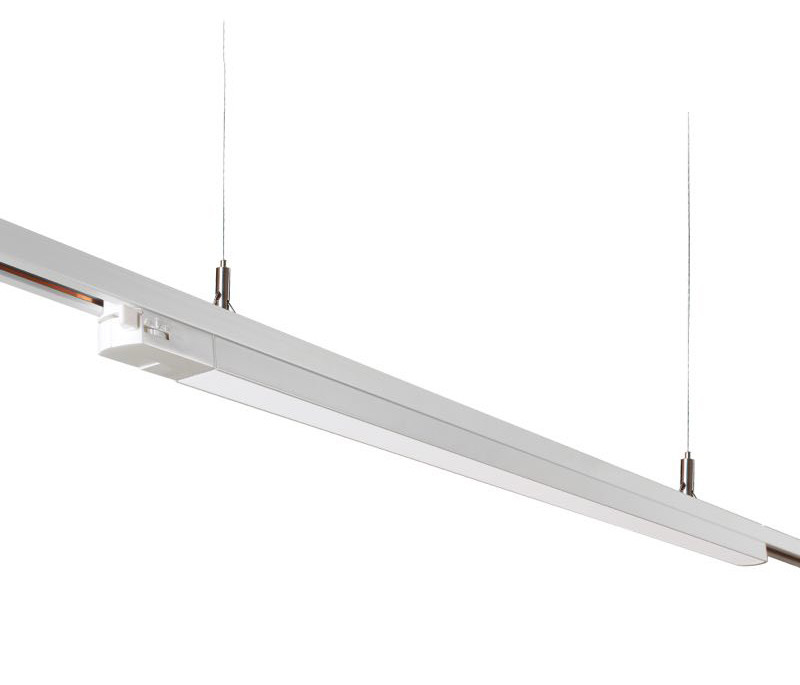

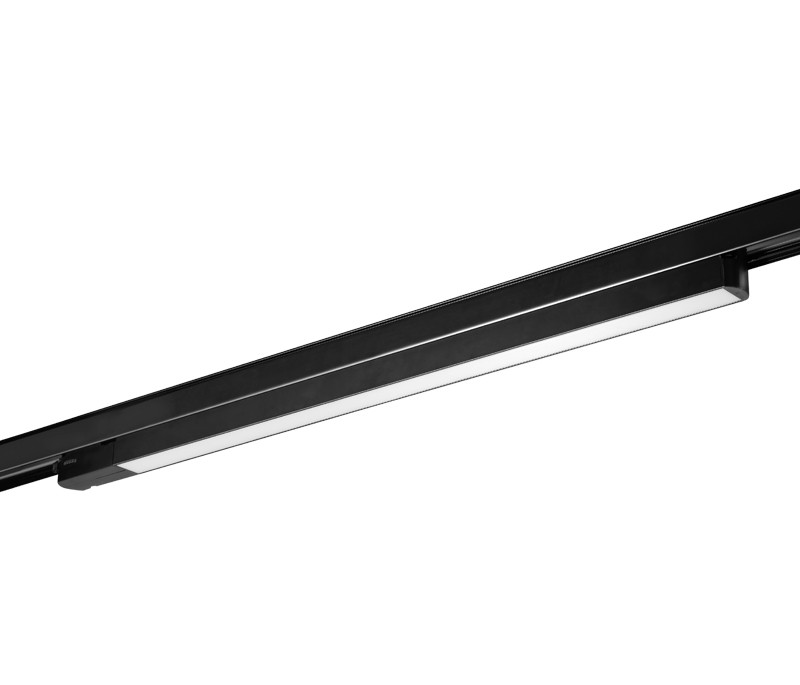

The installation process is hassle-free as this lighting solution is designed to work with track type installation. It can be replaced with ease, and the rail installation requires no ceiling structure, making it a low-cost option. The flexibility to move freely makes it highly adaptable to your lighting needs.

Overall, our 20W/30W LED linear track light offers a comfortable and flexible lighting experience, coupled with a long warranty period and reliable performance at an affordable price point. Choose this lighting solution to elevate your lighting experience and take control of your space’s lighting needs.

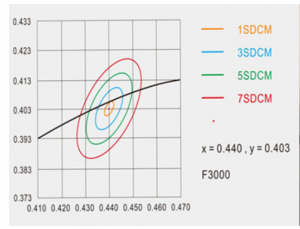

SCDM TEST:

Contact us to get full details specification and test report !
